Single beam suspension crane是电动Single beam suspension crane和CD1、MD1A light and small crane with rail operation used in conjunction with a type of electric hoist。Lifting capacity多为0.5ton~5ton，span3M~16rice，running speed 20m/min 及30m/min，If there are special requirements, they can be designed and manufactured separately。

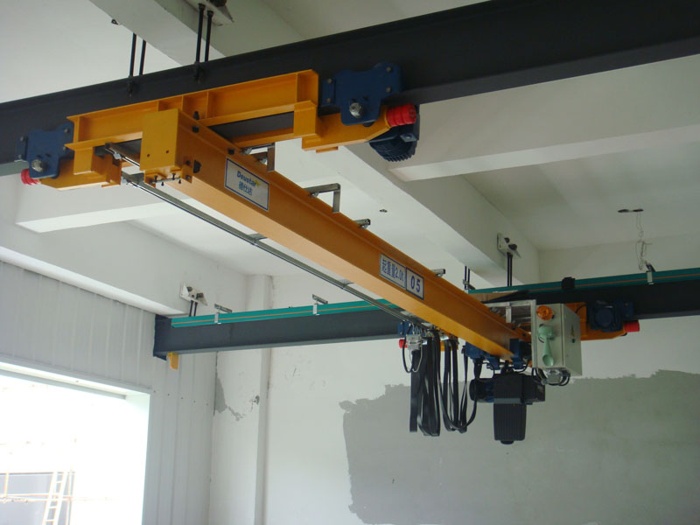

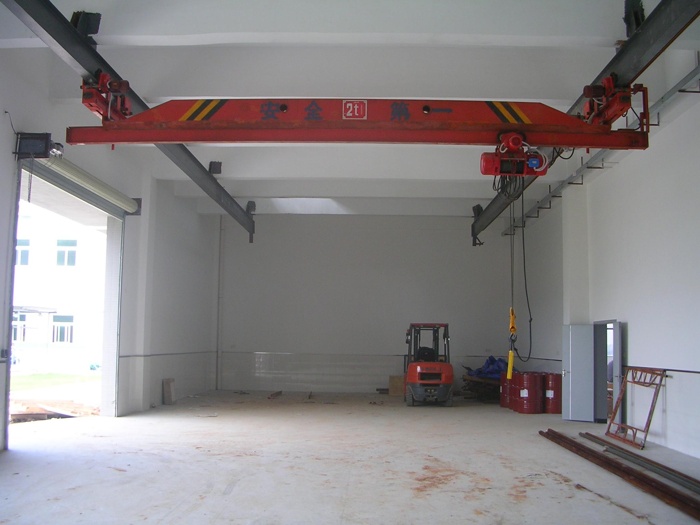

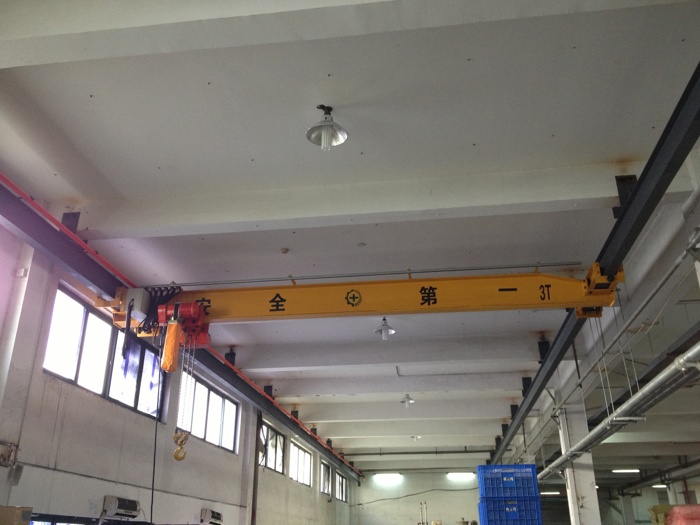

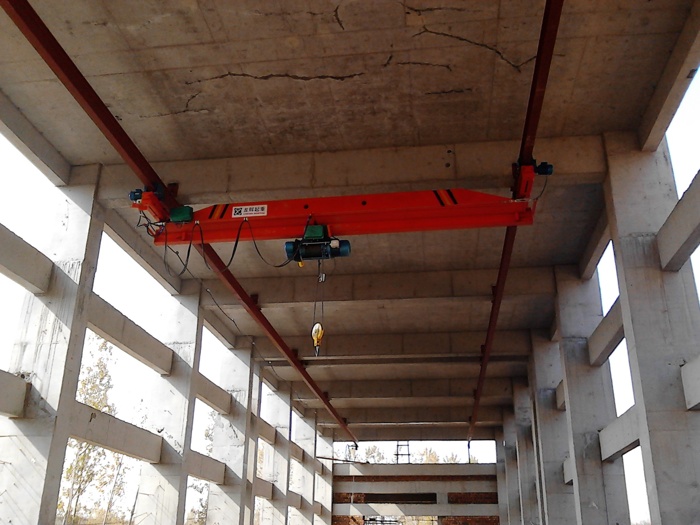

Single beam suspension crane图片：
Single beam suspension crane是按照标准JB/T2603Designed and manufactured，Electric hoistHanging on the flange of the I-beam track for walking，适用于厂矿、power station、The warehouse and workshop are used for lifting, loading, unloading, and transporting heavy objects between fixed spans。Work levelA3，Working environment temperature为-25℃～+40℃。Working environment temperature超过上述范围及有特殊要求时，Non standard design can be agreed upon through negotiation between the supply and demand parties。
Single beam suspension crane为地面操纵，操作方式可以选择有线手柄、无线遥控两种方式，Work level isA3~A5。Working environment temperature-25degree~45degree，relative humidity≦85%，适于在无易燃、易爆及腐蚀性介质环境工作，熔化金属、剧毒物品慎用。工作source：AC 380V 50HZ 也可根据客户要求定制定做。
Single beam suspension crane主要由主梁、beam、电动小车、an electric appliance、Lifting mechanism组成。Electric hoist悬挂crane因其具有结构紧凑、刚性好、操作灵敏、噪音低、无污染、安全可靠等优点。
Single beam suspension crane技术参数及外形尺寸：
| Lifting capacityQ(T) | 0.5T | 1T | 2T | 3T | |||||||||
| spanLk(m) | 3-7.5 | 8-12 | 12.5-16 | 3-7.5 | 8-12 | 12.5-16 | 3-7.5 | 8-12 | 12.5-16 | 3-7.5 | 8-12 | 12.5-16 | |
| 单边悬出长degreeL1L(m) | 750 | 1000 | 750 | 1000 | 500 | 1000 | 750 | 1000 | |||||
| Basic dimensions(mm) | A | 310 | 360 | 390 | 360 | 390 | 410 | 390 | 410 | 420 | 440 | ||
| B | 1500 | 2000 | 2500 | 1500 | 2000 | 2500 | 1500 | 2000 | 2500 | 1500 | 2000 | 2500 | |
| W | 1000 | 1500 | 2000 | 1000 | 1500 | 2000 | 1000 | 1500 | 2000 | 1000 | 1500 | 2000 | |
Structural diagram and installation diagram of single beam suspension crane：
Single beam suspension crane功率配置表：
| Lifting capacity（t） | 3、2、1、0.5 | |
| Crane operating mechanism | running speed （m/min） | 28、20、14 |
| Car running mechanism | Motor power（Kw） | 2×0.4、2×0.2 |
| Lifting mechanism （Electric hoist） | running speed （m/min） | 28、14、7、3.5、7/28 |
| Motor power（Kw） | 0.4、0.2 | |
| Lifting height（m0 | 3、6、9、12 | |
| Lifting speed（m/min） | 8、4/1、10/2.5、5/1.25 | |
| Motor power（Kw） | 2.3、1.5/0.35、1.0/0.25 | |
| Work system | A3 JC=25% | |
| source | 3mutually 50Hz 380V | |
Manufacturer information of single beam suspension crane：
We是一家专业的Single beam suspension crane生产厂家，长期为广大用户提供各种type号规格的单双梁悬挂crane生产与销售服务，direct deal、Reliable quality，欢迎新老客户来电来涵洽谈业务！Contact phone number：13903802779（Manager Jia），Single beam suspension crane为半定制机械，Track size and other parameters need to be determined based on your on-site conditions and needs。
