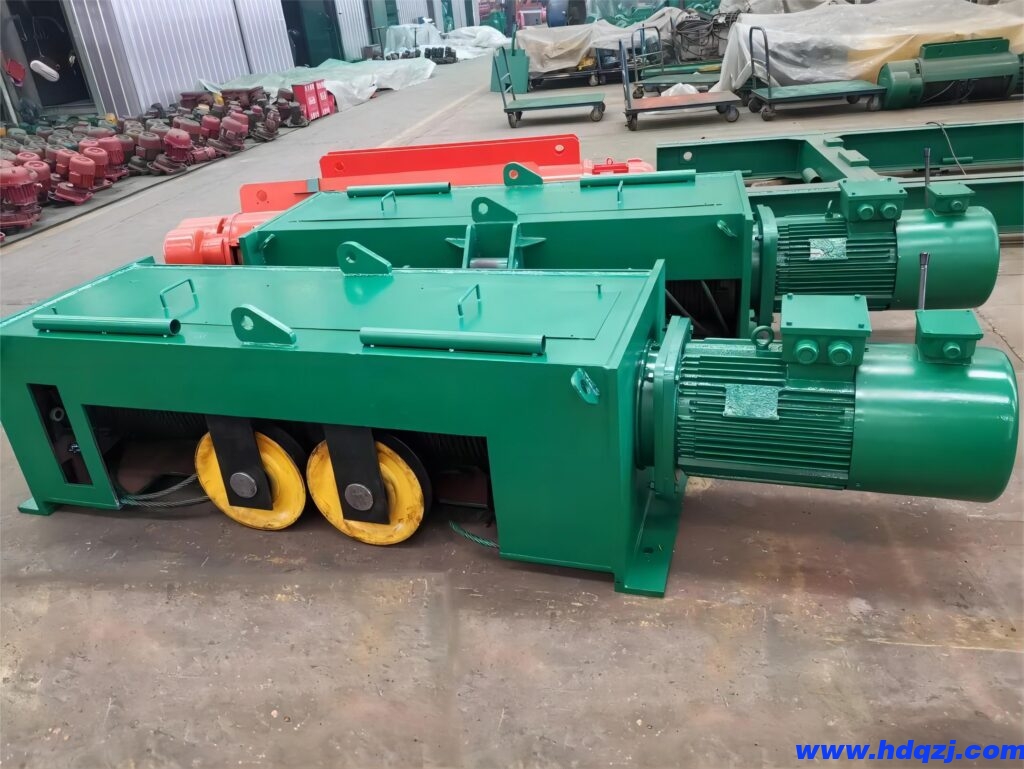

Introduction to insulated electric hoist

Insulated electric hoist是一种特殊用途的Electric hoist，主要适用于electrolysis车间，Electrolytic aluminum、magnesium、lead、锌、Smelting workshops for non-ferrous metals such as copper。Insulated electric hoist in the small car transmission mechanism、起升机构等多处安装Insulation system，Ensure that the resistance value of each insulation point is not less than at room temperature1.0MΩ，The insulation system adopts good insulation properties、High intensity、Made from materials with good wear resistance，product基本上由起升机构、Operating mechanism、Insulation system、Composition of electronic control system, etc，Product quality meets the requirementsISO、GB、JBEqual standards。

Selection of insulated electric hoist

• name call： Insulated electric hoist

• product 牌：Hongqi

• Lifting capacity：1T/2T/3T/5T/10T/16T/32T

• Lifting height：6M9M12M18M20M30M45M

• Lifting speed：8m/min、7m/min、3.5m/min

• running speed ：10m/min、20m/min、30m/min

• Work level：M3-M4

• product用途： Suitable for industries such as electrolysis and smelting of non-ferrous metals

• The applicable power supply is AC three-phase、50Hz、380V(特殊电压和频率按订货要求)

• 包装：Wooden box packaging

Insulated electric hoist技术参数表

Applicable range of insulated electric hoist

Suitable for smelting aluminum，The working conditions and use of electrolytic non-ferrous metal materials such as magnesium。This type of product is suitable for temperature-5℃~+40℃，humidity<85%，altitude1000mbelow，No fire、爆炸危险、Working in corrosive media and dust-free environments，禁止吊运熔化金属、Toxic、inflammable、Explosive materials。

Standard for insulated electric hoists

Insulated electric hoist to ensure safety and reliability，Insulation adopts multi-level insulation、多层次阻断的办法，Commonly referred to as three-level insulation，The first level of insulation is selected between the hook and pulley，Section二级绝缘选择在起重小车运行与主梁之间，有行车时，The third level of insulation is between the running track of the crane and the civil rail support beam。
At present, there are basically two types of insulation materials available for selection::One type is epoxy phenolic laminated glass cloth insulation material，Its performance should not be lower thanGB/T1303.6《Industrial hard laminated board with thermosetting resin for electrical purposes:Section6Partial phenolic resin hard laminated board》Corresponding technical requirements of the standard;Another type is the hard circular laminated tube and rod insulation material made of thermosetting resin used in electrical appliances，Its performance should not be lower thanFC61212-3-2《Industrial circular laminated pipes and bars made of dry thermosetting resins for electrical purposes using insulating materials.Section3part 单项材料规范活page2:Circular laminated molded pipes》Corresponding technical requirements of the standard。

Advantages of insulated electric hoist

CD/MDThe type insulated and anti magnetic electric hoist is used in electric small cars、Balance beam、Insulation points have been installed in multiple locations such as hook devices，And each insulation point is in a normal temperature state（temperature20~25℃，relative humidity≤85%）Downward use1000VThe resistance value measured by a megohmmeter≥1MΩ，吊钩钩头防磁的Electric hoist。This product is electrolytic、冶炼中相当经济，A safe and reliable lifting device
1、The insulation materials are all made of epoxy phenolic laminated glass cloth board and thermosetting resin industrial hard circular layer bar material，Safe and reliable insulation performance
2、新颖绝缘防磁吊钩装置更具优势
A、吊钩外壳,吊钩滑轮均采用加厚高强度绝缘材料打造，Wear resistance、Stronger insulation
B、The hook head adopts304Stainless steel material forging、More reliable anti magnetic performance
C、Equipped with locking device,More secure and reliable
3、吊钩钩头按304不锈钢材质的性能要求设计，安全可靠性更高
4、Multiple varieties and specifications，Wide range of lifting and operating speeds
5、Continued itCD/MDElectric hoisteasy operation ，性价比高的特点
6、CD/MDSeries derived products，零部件通用性强，after-sale service

Insulated electric hoist working environment

Transportation and hoisting equipment for electrolytic aluminum workshop，Electric hoist in electrolytic aluminum workshop，Insulation and anti magnetic electric hoist for electrolysis workshop，Electric hoist for hoisting and transportation in smelting workshop，绝缘Wire rope electric hoist，electrolysis/冶炼车间用Electric hoist，Insulated crane

Performance of insulated electric hoist

Insulated electric hoist为成熟Electric hoist的派生product，除拥有绝缘性能外，还拥有成熟Electric hoistproduct的其余特点：
1、easy operation ；
2、Multiple product specifications and models，Wide range of lifting and operating speeds；
3、零部件通用，after-sale service便捷；
4、Simple structure，Small size。
