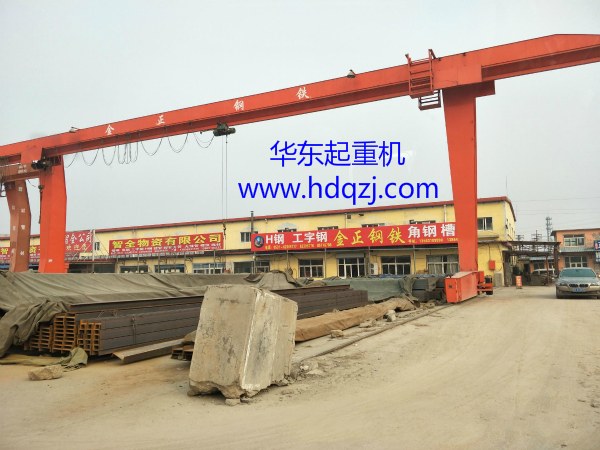

MHLType electric hoist gantry crane, also known asMHLtype单梁偏挂Gantry crane、MHLType offset gantry crane、MHLType electric hoist inclined hanging gantry crane、LType electric hoist inclined hanging gantry crane等叫法。

Electric hoist偏挂Gantry craneproduct介绍：
MHLType offset gantry crane是根据GB/14406-2011《Universal gantry crane》、JB/T5663-2008 《gantry crane with electric hoist 》标准设计制作，Used in conjunction with electric hoists，是有轨运行一般用途的中小typecrane。

Specification and model of electric hoist inclined hanging gantry crane：
1、偏挂Gantry cranetype号：MHLtype；
2、Lifting capacity：1ton、2ton、3ton、5ton、10ton、16ton、20ton、32ton；（Common specifications）Non standard customization is possible。
3、span：10rice、15rice、19rice、20rice、21.5rice、23rice、28rice、35rice；（Common specifications）Non standard customization possible。
4、Lifting height：6rice、9rice、12rice、18rice、24rice、30rice；（Common specifications）Non standard customization is possible。

Expansion and application of electric hoist inclined hanging gantry crane：
MHLElectric hoist gantry crane可以配套直径2Use of electromagnetic suction cups below meters、也可配套8立方以下抓斗使用、It can also be used in conjunction with non-standard processing of various types of lifting equipment for use。

Electric hoist偏挂Gantry crane功能作用：
MHLThe support legs of the inclined or curved gantry crane are designed to be inclined or bent，The purpose is to have a larger horizontal space，Generally, in work environments where lifting objects is long and requires large angle rotation，It can allow the lifted goods to pass smoothly through the supporting feet on both sides。

Electric hoist偏挂Gantry crane尺寸图纸：

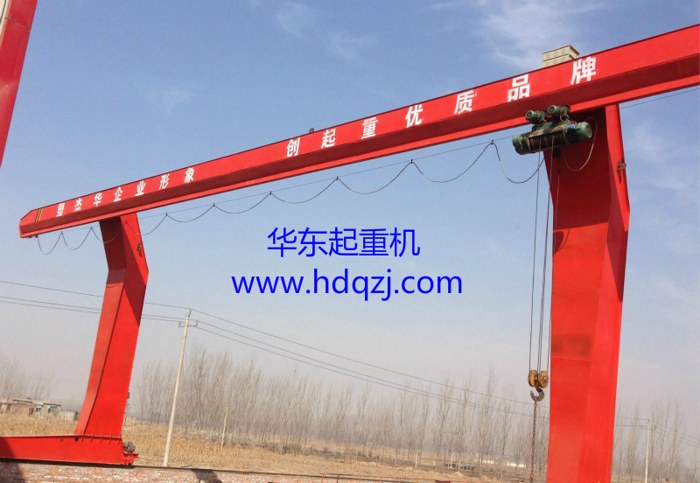

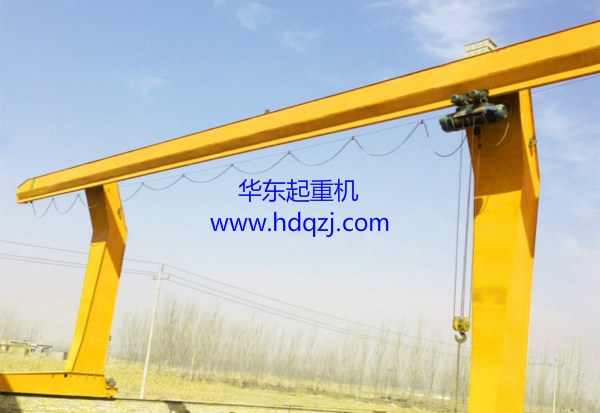

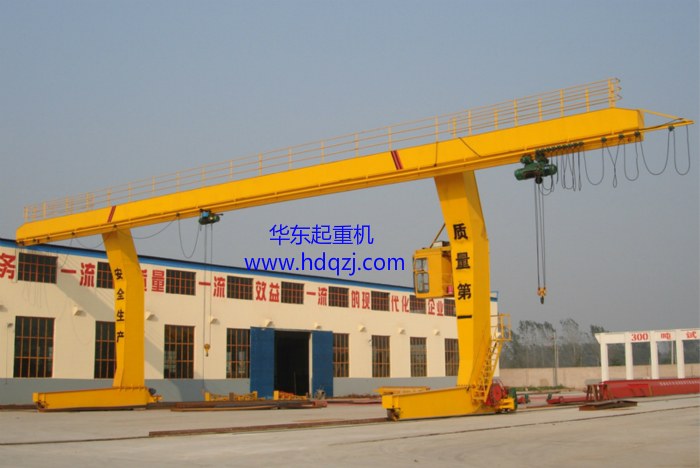

Electric hoist with partial hanging door type crane, model and appearance：
MHLType offset gantry crane一根主梁、两根弯曲式支腿、Two end beams，常用偏挂Gantry crane基本都带外悬，There is no fixed parameter for the length of the cantilever that can be customized（rice）。

Electric hoist偏挂Gantry crane工作环境：
MHLType offset gantry crane工作环境温度为-20℃～40℃，Prohibited in flammable environments、explosive 、Used in corrosive chemical media environments，特殊环境使用需要选购专用偏挂Gantry crane。

Electric hoist偏挂Gantry crane技术参数：
1、Work level：A3/M3；
2、Lifting speed：5Fast delivery of tons and below8m/min 、10Ton fast7M/MIN 、16Ton fast3.5M/MIN；
3、running speed ：Car operation：20m/min Quick and actionable30M/MIN、Crane operation：20m/minQuick and actionable30M/MIN；
4、source：Three-phase AC    380V    50HZ   Other voltages can be customized（If exported abroad，Need to refer to the power supply voltage of other countries）；

Electric hoist偏挂Gantry crane操作方式：
MHLType offset gantry crane操纵方式：Wired handle、Wireless remote control、Driver's cab；Three operating methods can be mixed and used in combination，The cockpit of the control room can be equipped with a wireless remote control simultaneously。

Scope of application for electric hoist suspended gantry crane：

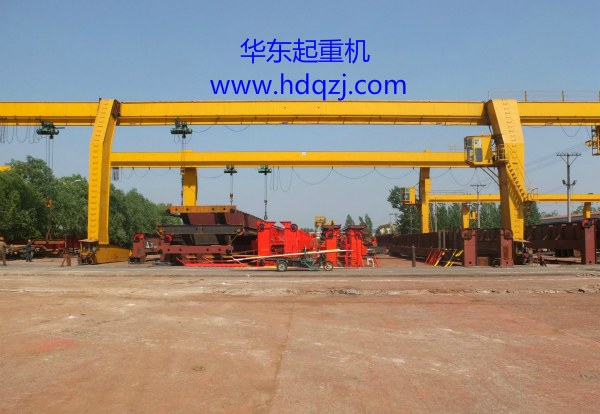

MHLThe inclined hanging gantry crane is suitable for the steel market in open-air places、warehouse、Material yard、Railway freight station、Loading, unloading, and handling of various materials at port terminals，Widely used in logistics transportation operations。
