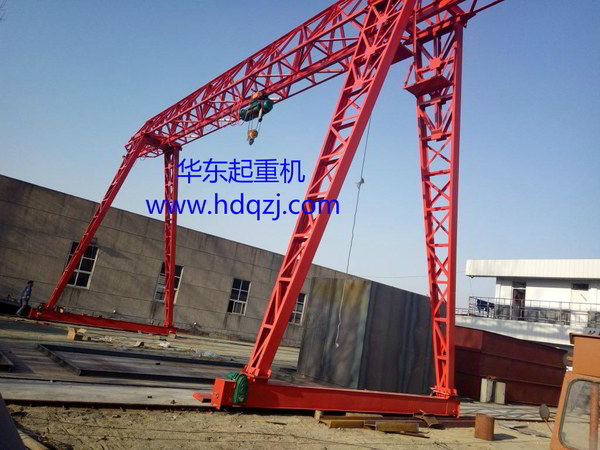

MHIntroduction to the Flower Frame Dragon Gate Crane：
Flower rack type gantry crane也有花架Gantry crane、Yanjiaoliang gantry crane、Flower frame gantry crane、The title of Yanjia Longmen Crane。Single beam flower frame gantry crane、Double beam flower frame gantry crane、Single main beam flower frame gantry crane、Double beam flower frame gantry crane。

MHtypeFlower rack type gantry crane规格type号：
1、花架Gantry cranetype号：MHtypeFlower rack type gantry crane、MHEtypeFlower rack type gantry crane；
2、花架Gantry crane规格：1ton、2ton、3ton、5ton、10ton、16ton、20ton、Non standard customization is possible。

MHStructural Drawing of Type Flower Frame Gantry Crane：


MHtypeFlower rack type gantry crane技术参数：
1、span：17rice、18rice、21rice、22rice、24rice、25rice、27rice、30rice、35rice、Non standard customization possible。
2、Lifting height：6rice、9rice、12rice、18rice、24rice、30rice、Non standard customization is possible。
3、Work level：A3/M3；
4、Main hook lifting speed：0.3M/MIN、0.7M/MIN、0.8M/MIN、3M/MIN、7M/MIN、8M/MIN、Customizable；
5、Vehicle operating speed：10M/MIN、20M/MIN、30M/MIN、40M/MIN、Customizable；
6、crab travelling speed ：20M/MIN、Non standard customization is possible；
The above parameters need to be based on the actual lifting capacity、span、Design and production of lifting height，Customization can also be designed according to customer needs；
7、source：Three-phase AC    380V    50HZ   Other voltages can be customized（If exported abroad，Need to refer to the power supply voltage of other countries）；

MHScope of application of flower frame gantry crane：

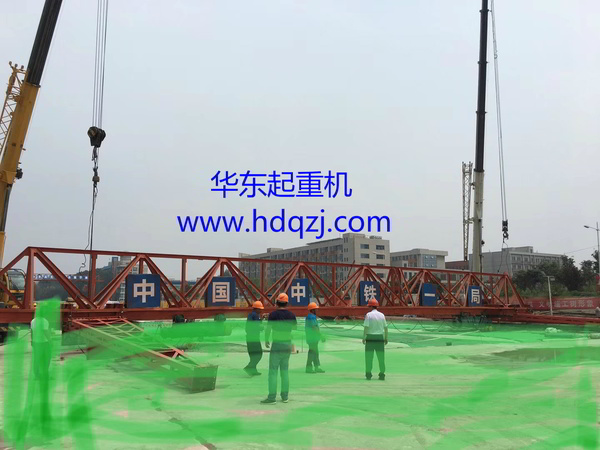

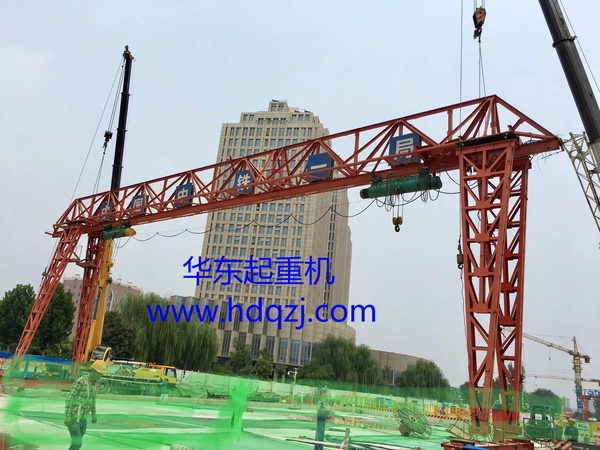

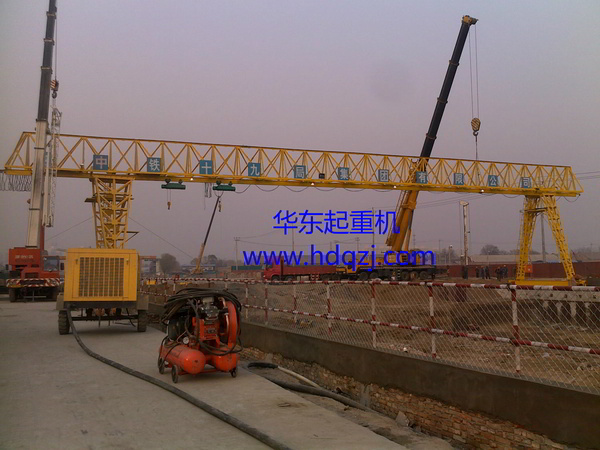

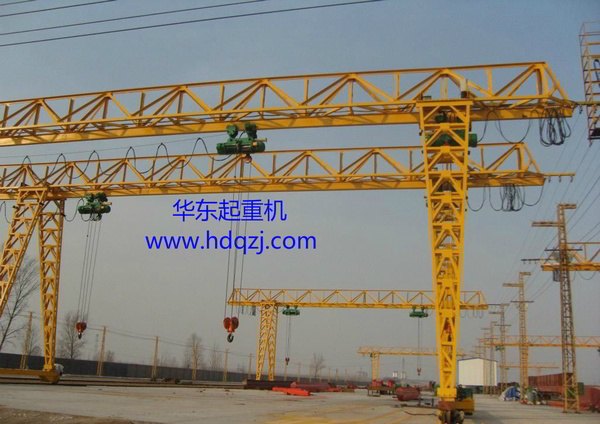

Flower frame gantry crane is widely used in subway construction、建筑工地、Logistics transportation、铁路公路、Warehouse and freight yard、Cement product factory、Mechanical assembly plant、Lifting, transportation, loading and unloading work in open-air operation sites such as hydropower stations，Also suitable for working in indoor workshops。

MHtypeFlower rack type gantry cranebuy说明：
buyMHPlease provide the following data for the flower rack gantry crane，So that we can confirm your needs faster！
1、Longmen lifting weight；
2、Dragon Gate Crane Span（From the center of the track to the center of the guide rail）；
3、Gantry craneLifting height（Hook center grounding）；
4、Do you need an external suspension（Please provide the overhang length）；
5、Do I need to order guide rails and cables？（Please provide the running length）；
6、If you have more detailed information，Please inform us，We will offer more favorable prices for gantry cranes。
