Selection of permanent magnet suction cups：

JG-400KG, JG-600KG, JG-1000KG, JG-2000KG, JG-3000KG, JG-5000KG, Handle

Introduction to permanent magnet suction cup products：

Overview of Permanent Magnet Crane Using High Performance Magnetic Materials，High suction force，Small volume，Light self weight，easy operation 。No power required，It is an ideal lifting tool for energy conservation 。Permanent magnet suction cup permanent magnet crane, also known as permanent magnet suction hanger、Permanent magnet suction cup、Magnetic suspension、磁性起重器、Lifting magnet、Lifting permanent magnet、Permanent magnet, etc。Has a small volume、Stronger suction force，No electricity needed，The residual magnetism is almost zero，High safety factor等优点。

Permanent magnet suction cup主要用途：

永磁吸分为手动Type permanent magnet crane和全自动永磁起重器两种，采用当代高性能 Nd-fe-B 磁性材料钕铁硼，ZThe maximum pulling force is the rated lifting capacity 2.8-4 times。

Permanent magnet suction cup特点：

1、结构小巧，形状紧凑，易于操作
2、高性能永久磁性材料，不退磁
3、工作时无需电力或其他动力的支持
4、先进科学的磁路平衡设计，Strong suction force，The residual magnetism is almost zero，Safe and reliable。
5、ZThe maximum pulling force is the rated lifting capacity3.5times，High safety factor。

Applicable range of permanent magnet suction cups：

Permanent magnet suction cup适用于搬运钢板、Iron blocks and cylindrical iron materials。Like mechanical parts、冲床模具及各类钢铁材料。
Permanent magnet cranes are widely used in the mechanical industry、Mold manufacturing industry、Warehouse and transportation departments handle steel plates、钢锭等导磁性物体。
Permanent magnet crane used for lifting and handling steel，平整的机械零部件及各种模具的安装和搬运。 适用于造船、construction machinery、Lifting of ambient temperature steel plates in industries such as automobiles、Lifting tools for handling and other operations。

Permanent magnet suction cup优点：

1.永磁起重器采用计算机模拟磁路设计，Reasonable magnetic field distribution，透磁深degree大。
2.The body of the permanent magnet crane iron remover is simplified compared to the electromagnetic iron remover，不需励磁电源，不需冷却系统。
3.永磁起重器省电节能，故障率低。
4.永磁起重器操作简单，运行Safe and reliable。
5.All technical indicators of the permanent magnet crane meet the requirementsJB/T8711-1998标准。

Composition structure of permanent magnet suction cups：

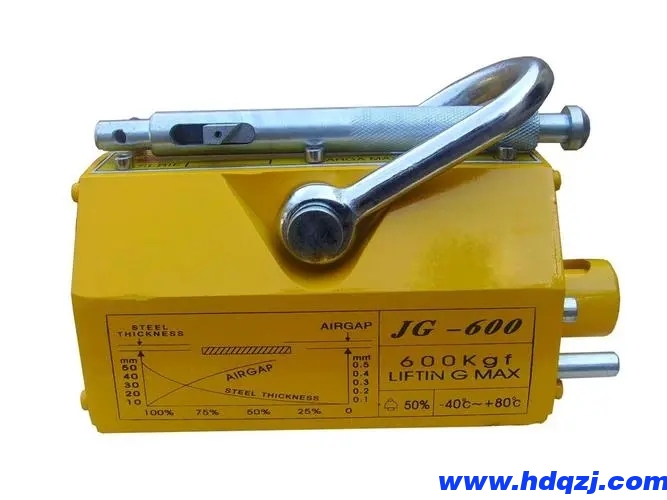

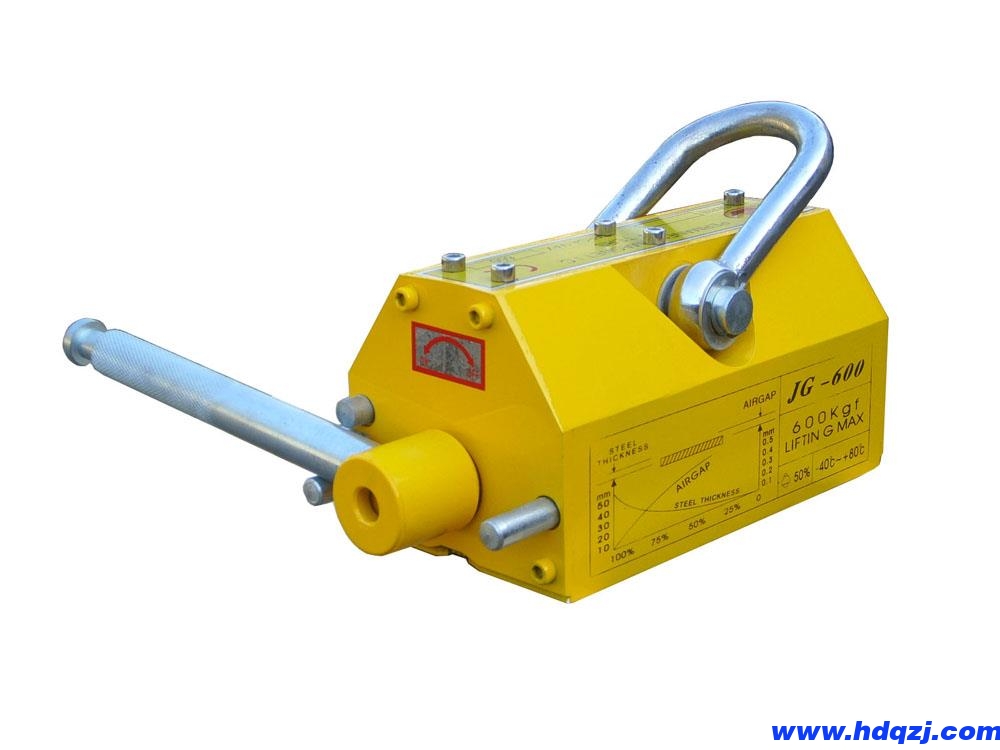

The permanent magnet crane is composed of high-performance neodymium iron boron permanent magnetic materials and a strong magnetic system，By turning the handle，Changing the magnetic force of the strong magnetic system to achieve the attraction and release of the workpiece。The upper part of the crane has a lifting ring for lifting objects，下有一V形槽供吸持相应的cylinder形物体所用。

Working principle of permanent magnet suction cup：

The working principle of permanent magnet cranes is manufactured using Faraday's electromagnetic induction principle。Internally using high-performance permanent magnetic material neodymium borax，能够在磁路中产生很强的吸力，Flip the handle to change the magnetic field lines and put the crane in working or closed state;No external power supply required，是一种既安全节能，又高效率的新type起重工具。
When the crane is in working condition，起重器底部的吸吊面构成了一对纵向磁极，将铁器材料的workpiece牢牢的吸住，On the bottom surface, there are alsoV形槽，Therefore, it can both suck and lift plate shaped workpieces，It can also lift cylindrical workpieces。也因此起重器对板材的厚degree和面积都有严格的要求。

Usage of permanent magnet suction cups:

1、 During lifting，Clean the surface of the lifted workpiece first，If there are rust scales and protrusions, they should be cleaned。Centerline of permanent magnet craneZ好与workpiece重心线重合，Then place the crane on the work surface，The rotating handle is composed of”-“Number position，向”+”号方向旋转至限位销。检查Handle的保安斜块是否自动锁定，Then proceed with lifting。
2、 When lifting the workpiece，Overloading is strictly prohibited，It is strictly prohibited for the human body to pass under the workpiece，The degree of the suspended workpiece and the ambient temperature are not greater than80degree，无剧烈振动及冲击。
3、 When lifting cylindrical workpieces，Should be maintainedBThe angle between the groove and the workpiece is in contact with two straight lines，So its lifting capacity is only the rated lifting capacity30%-50%。
4、 完成吊运后，向内按懂Handle按钮，是Handle上的保安键与保安销脱离。Handle由”+”向”-“号方向旋转到限位销。Put the crane in a closed state，Separate the workpiece from the crane。

Please provide the following data for ordering and purchasing permanent magnet suction cups，So that we can confirm your needs faster！

1、颜色。
2、tonnage。
3、Other requirements。

Permanent magnet suction cup manufacturer company:

Henan permanent magnet suction cup manufacturer provides customized design and manufacturing services for crane permanent magnet lifting devices；Complete specifications of permanent magnet cranes。
