Product Introduction of Rail Handling Device：
Imported from GermanyROBEL43.02Domestic rail handling device。Rail handling device is used for lifting and handling longitudinal and transverse tracks and extending embankments，Used for transverse steel rail、Vertical movement Lightweight，Aluminum material Suitable for safety、fast、有效的移动转接器，For example, if a steel rail breaks，Used for insulation joints, etc 有两个支撑结构，A crossbeam，This device can be disassembled into individual components，When needed, it can be quickly and easily assembled with original German importsROBELThere are two products to choose from: Robel rail handling device and pure domestic rail handling device。
rail搬运装置技术特点∶
1、提升精准；
2、支架上有螺栓孔，Can adjust the height of the crossbeam；可折叠的搬运提把；Wooden feet；以及导辊；
3、容易拆卸，Easy to move back and forth between workplaces；
4、ROBEL41.04The crane arm is equipped with a gear rack mechanism，安全曲柄以及负荷压迫制动器；
5、ROBEL42.10滚子搬运钳有自锁能力，还附带用于rail纵向运动的滚子调节装置；
rail搬运装置工作原理：
The rail handling device is used to lift and move any length of guide rail along the longitudinal and transverse directions。When used with an appropriate number of devices, it is recommended that the distance between devices is approximately10m，用于通过螺栓调节横向构件的high度，Folding handle，木脚和脚轮。 易于安装拆卸。 Small carROBEL41.04与齿条千斤顶，安全曲轴和负载制动辊支撑钳勇于 夹紧Robel42.10 Vertical movement导轨。

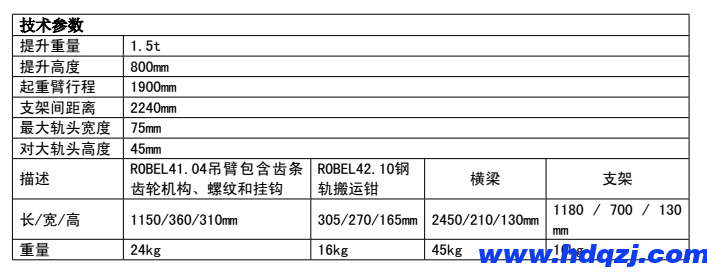

Technical parameters of rail handling device：
起重能力：1.5T
行程：800mm
Cart travel distance：1900mm
span:2240mm
railZ大头部wide度:75mm
railZ大头部high度:45mm
配件名称：ROBEL 41.04Hand pushed frame and hook ROBEL 42.10 Roller support pliers beam rod
尺寸：1150 x 360 x 310 mm 305 x 270 x 165 mm 2450 x 210 x 130 mm 1180 x 700 x 130 mm （long*wide*high）
weight：~24 kg ~16 kg ~45 kg ~16 kg
