Spiral armcraneintroduce

       BZDType rotary arm crane(Outer sliding ring type)The main models include：BZD0.25、BZD0.5、BZD1、BZD2、BZD3、BZD5type，The lifting capacity is：0.25ton、0.5ton、1ton、2ton、3ton、5ton（t）etc.，BZDA type of rotary arm crane is a type of crane used in conjunction with an electric hoist。Belongs to the fixed column type（Pillar type）Rotary arm crane（Rotating arm crane），It is made up of pillars、回Spiral arm、Composed of rotary arm drive device and electric hoist。The base of the lower end of the column is fixed to the concrete foundation by anchor bolts，The motor drives the reducer drive device to rotate the rotary arm，Electric hoist performs reciprocating operation on the rotating arm I-beam。BZDThe Y-type rotary arm crane has a simple structure，easy operation ，Small space occupation。作业范围大etc.特点。广泛适用于机械制造、汽车、Modern industrial production lines such as shipbuilding、pipeline、装备线及仓库、wharf、Improving work efficiency for enterprises in material lifting operations in laboratories and other settings，Ideal lifting equipment for improving working conditions。

Instructions for Jib Crane

• Product Name：BZDType rotary arm crane(Outer sliding ring type)

• Alias：Cantilever crane and rotary arm crane

• Model specifications：BZDtype

• Category：定柱式Pillar type

• Product origin：Changyuan, Xinxiang, Henan

• Non standard customization：Undertake non-standard manufacturing

• Is it in stock：Customized production

• production cycle ：10~15day

• Scope of Supply：nationwide

• mode of service：Self pickup or agency consignment

• Is it installed：Install separately

• After sales methods：One year warranty

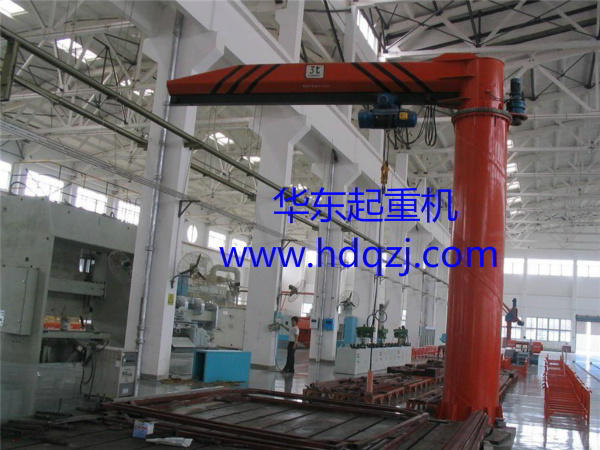

Rotary arm crane atlas

Rotary arm crane parameters

BZDPicture and external dimension diagram of a type of rotary arm crane(Outer sliding ring type)

BZDTechnical Specification and Parameter Table of Type Rotary Arm Crane(Outer sliding ring type)

model	Rated lifting capacity (t)	最小回转半径 R1(mm)	Maximum turning radius R2(mm)	Lifting height	外形高度 H1(mm)	Exterior width	Turning angle	running speed	回转速度 (r/min)	deadweight (kg)
BZD0.25	0.25	1100	4000	3000	3750	4550	arbitrarily	20	0.75	800
BZD0.5	0.5	1200	4000	3000	4000	4600	arbitrarily	20	0.75	900
BZD1	1	1300	4000	3000	4350	4650	arbitrarily	20	0.75	1190
BZD2	2	1300	3000	3000	4500	3700	arbitrarily	20	0.75	1800
BZD3	3	1300	3000	3000	4650	3800	arbitrarily	20	0.6	2000
BZD5	5	1400	3000	3000	5000	3800	arbitrarily	20	0.6	2900

Rotating arm crane manufacturer

       BZDtypeOuter sliding ring typeRotary arm crane（Rotating arm crane）The manufacturer also provides users with heavy-duty rotary arm cranes、Fixed column jib crane、壁柱式Rotary arm crane、Wall mounted crane、Mobile rotary arm crane、Explosion proof rotary arm crane、Mobile rotary arm crane、KBKRotary arm crane和智能Electric折臂吊、气动折臂吊、软索式/硬壁式助力机械手、TThe design, manufacturing, installation, and maintenance of mechanical equipment such as type assisted robotic arms，More national standards、Non-standard、Electric、Manual、半ElectricRotating arm crane manufacturer品牌、Origin and source of goods、Model specifications、Product selection、technical parameter、Execution standards、Drawing images、construction plan 、Please contact customer service for factory prices and other inquiries。
