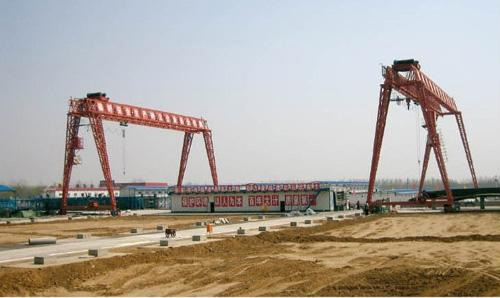

Double beam flower frame gantry craneproduct介绍：
Double beam flower frame gantry cranes are all universal gantry cranes，model：MGtype160tThe double beam flower frame gantry crane below and below is a type of longitudinal movement along the track direction，Lifting the car作横向运动，Hook for lifting and lowering motionGantry crane。
Double beam flower frame gantry crane适用于工矿企业、highway、railway、warehouse、Loading and unloading handling work in the material yard，At the same time, it is also the most ideal and essential lifting machinery for lifting prefabricated beams in prefabricated beam yards at present。本product适用于温度—20℃~40℃，No fire、Working in environments without explosion hazards and corrosive media。
Double beam flower frame gantry crane为了运输和现场拼装方便，金属结构件采用销轴或者法兰联结，Its structure is composed of1Large vehicle walking、2支腿、3main beam座、4main beam、5Lifting the car、6Stabilizer bar、7 Balanced beam、8操作室、9操作室底座等组成。
Technical parameters of double beam flower frame gantry crane：
Lifting capacity | 主提升重量 | 20t~40t | 50t~60t | 70t~80t | 90t~100t | 120~140t | 160t | |
Secondary lifting weight | 5t | 10t | ||||||
span | 10m~65m | |||||||
Raise height | 7m~50m | |||||||
Work level | A3 A4 | |||||||
speed(m/min) | 主钩提升speed | 0.95 | 0.8 | 0.6 | 0.6 | 0.9 | 0.6 | |
Running speed of overhead crane | 4~15 | 4~15 | 4~15 | 3~10 | 3~10 | 3~10 | ||
Operating speed of the entire machine | 6~20 | 6~20 | 6~20 | 6~20 | 6~20 | 6~20 | ||
副钩提升speed | 8 | 8 | 8 | 7 | 7 | 7 | ||
Operating speed of auxiliary hook | 20 | 20 | 20 | 20 | 20 | 20 | ||
电动机功率(kw) | 主钩提升 | 7.5~11 | 11~15 | 15 | 15~22 | 15~32 | 15~32 | |
副钩提升 | 7.5 | 7.5 | 7.5 | 13 | 13 | 13 | ||
Crane operation | 3~9 | 3~9 | 3~9 | 6~18 | 6~18 | 6~18 | ||
整机运行 | 6~24 | 6~24 | 8~36 | 8~36 | 8~36 | 8~36 | ||
副钩运行 | 0.8 | 0.8 | 0.8 | 0.8x2 | 0.8x2 | 0.8x2 | ||
整机总重(t) | 13~126 | 21~156 | 25~178 | 28~210 | 32~240 | 37~258 | ||
Total power of the entire machine(kw) | 15.1~130 | |||||||
Maximum wheel pressure(kn) | 142~310 | |||||||
Recommended steel rails | P38 | P43 | P50 | |||||
source | Three-phase AC50Hz 380V 3-phase | |||||||
