Single speed electric hoistproduct介绍：
CD1Type steel wire rope electric hoist, also known asCD1Type electric hoist，CD1Type electric hoist，CD1Type single speed electric hoist，CD1Electric hoist。CD1Type steel wire rope electric hoist分为CD1Type suspension electric hoist（CD1Small car type electric hoist），CD1Type fixed electric hoist（CD1Type seated electric hoist）。

Production standards for single speed electric hoists：
CD1The type steel wire rope electric hoist is based onJB/T9008-1999《Wire rope electric hoist》(Old standards)、JB/T9008-2004《Wire rope electric hoist》（New standards）A lightweight and compact design and manufacturing improvementcraneequipment。

Single speed electric hoist技术参数：
1、CD1Lifting capacity of type electric hoist： 0.5ton、1ton、2ton、3ton、5ton、10ton、16ton、20ton ；
2、CD1Lifting height of type electric hoist： 6m、9m、12m、14m、18m、24m、30m ；
3、CD1Type gourd work level：A3/M3；Work system：JS=15%；Electric hoist工作类type为中级，Each level of work level increase during use，The rated lifting capacity must be correspondingly reduced20%。
4、CD1Electric hoistButton switch：There are two methods of wired joystick control and wireless remote control。
5、CD1Type single speed electric hoist protection level： IP4401 / IP5401；
6、CD1Type electric hoist电源：AC three-phase、50Hz、380v；
7、CD1Type steel wire rope electric hoist起升速度：
5ton及below速度8m/min、
10The lifting speed per ton is7m/min、
16The lifting speed per ton is3.5M/MIN；

Working environment of single speed electric hoist：
CD1Type steel wire rope electric hoist suitable for temperature-20℃—40℃，relative humidity≤85%，altitude1000mbelow，No fire、Working in environments with explosive hazards and corrosive media，Prohibit the transportation of molten metal，Toxic、inflammable、易爆物品的工作条件中使用，MDType fast and slow electric hoist。

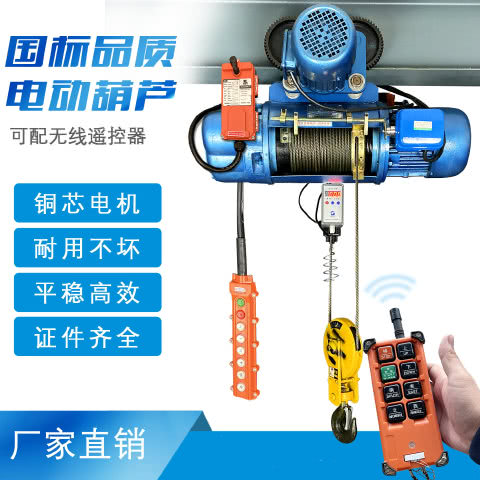

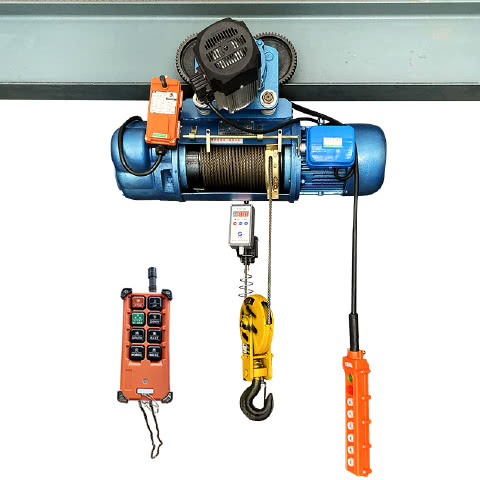

Single speed electric hoist组成结构：
Running the gearbox、Running the motor、Lifting motor、Lifting reducer、卷筒、卷筒外罩、Hook、Button switch、coupling 、contactor、Power access cable、Limiter、load lifting limiter 、Heavy hammer limiter、Wireless remote control、Wired handle、Rope guide、Steel wire rope。

Single speed electric hoist适用范围：
CD1Type steel wire rope electric hoist是LDAElectric single beam bridge crane常用的起升装置，Improved hoist that can also be used separately with I-beams。Widely used in factories、mine、railway、wharf、Warehouse and service industry，是一种能适应多种工况使用的Lifting equipment。

Single speed electric hoist采购购买：
购买Wire rope electric hoistPlease inform usbelow数据，So that we can confirm your needs faster！
1、Electric hoist lifting capacity；
2、Electric hoist lifting height（Hook center grounding）；
3、Do I need to run the sports car and control the electrical appliances？（Please provide the running length）；
4、If you have more detailed information，Please inform us，We会更给出优惠的Electric hoist价格。

Single speed electric hoist厂家company：
Henan ProvinceCD1The manufacturer of electric wire rope hoists provides customized electric hoists、非标Single speed electric hoist设计定做等业务；Complete specifications of electric hoists。Provide electric hoist production、transport、install、test、One stop service including training，Turnkey project reduces procurement costs for customers。
